C a s e   S t u d i e s

Fontaine Saint-Jean, Villeneuve-lez-Avignon (France)

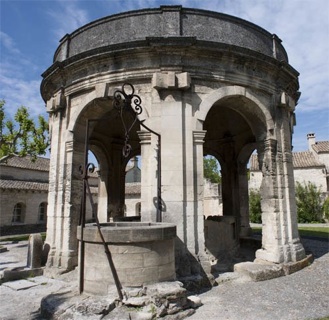

This survey is one of the first tests carried out within the MAP laboratory, about automatic point cloud generation from photographies. The objective was to realize a 3D-model and an unwrapped orthophotography of the Saint-Jean cloister's fountain (la Chartreuse, in Villeneuve-lez-Avignon).


The mission was conducted in june, 2010, in the middle of the day. The acquisition was made with the NIKON D3X (24 megapixels) and a 20mm lens, and concerns only the outer layer of the dome covering the fountain.

All in all, about fifty photographies were taken during the survey. Nine point-clouds were used to create the complete 3D-model.

Download PDF version of Fontaine Saint-Jean case study (5.4 mo)

french version
CS_stjean-fr.pdfCS_st-jean_files/fontaine_saintjean.pdf

Photographic acquisition and computer processing: Aymeric Godet

Documentation: Nicolas Nony
